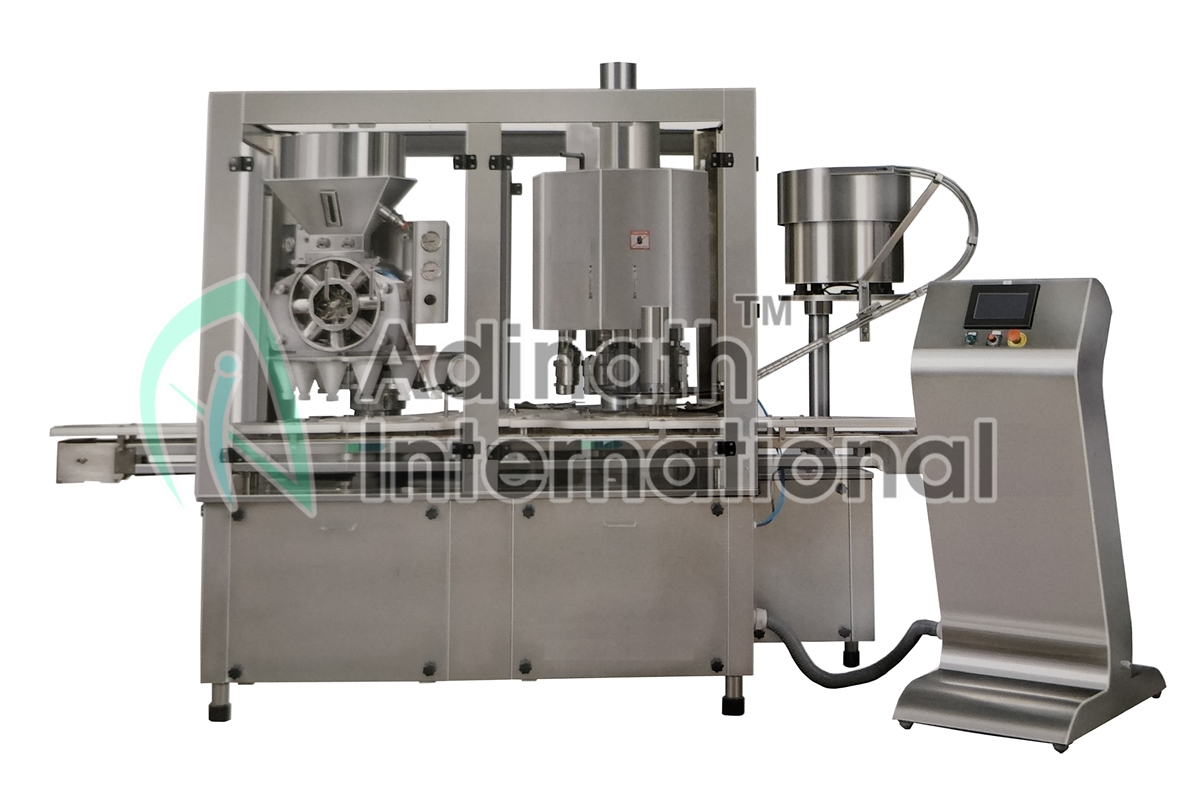

Dry Syrup Powder Filling Machine (powder syrup filling machine) including oral syrup filling machine is is suitable for Glass, Plastic, PET, HDPE, LDPE Bottles with maximum speed of 60 to 120 Bottles per minute depending on Powder Fill Volume, Type of Powder, Bottle Diameter and Bottle Neck Diameter.
The Machine works on proven time-tested Vacuum and Air Systems to Fill powder in Bottle achieving higher speed and higher accuracy. Machine with unique Bottle Lifting and Neck Holding system avoid spillage of powder on bottle shoulder, neck and body keeps bottle clean and also avoid wastage of powder. Machine with complete synchronization of Bottle Infeed Star Wheel, Powder Wheel movement and outfeed Star wheel for smoother operation. Machine with Rotary Bottle Moving system ensures very high-speed powder filing through independent moving funnel along with bottles for greater speed and performance without compromising speed and fill accuracy. Machines with unique vibratory system inside the funnel helps filling of semi free flow type powder at higher speed.
.
The incoming sterilized dry bottle is fed through the in-feed turn table. Suitable guide supply bottles on to flat conveyor belt at the required speed for feeding. There is filling head mounted on machine top plate in the same line.
When bottle reaches to the mechanical holder detained filling station, Bottle sensor sense the bottles and Magnetic clutch starts to rotate which is mounted on auger shaft. It fills the desired amount of powder into the bottle through auger, where rotation time is previously determined.
Duly filled bottles go upward on to the sealing station with the help of SS conveyor belt.
| Model | AI-DPM 12 | AI-DPM 16 | ||
|---|---|---|---|---|
| Production Output | Up to 80 bottles/minute | Up to 120 bottles/minute | ||
| Bottle Diameter | Up to 85mm | Up to 85mm | ||
| Bottle Height | Up to 200mm | Up to 200mm | ||
| Fill Volume | 5gms. To 70gms. In Single Dose with the help of change parts for different fill volume | 5gms. To 70gms. In Single Dose with the help of change parts for different fill volume | ||
| Fill Accuracy | ± 2% Depending upon the Powder, under the controlled level of Humidity | ± 2% Depending upon the Powder, under the controlled level of Humidity | ||
| Humidity | Below 28% Rh required on machine to be arrange by customer | Below 28% Rh required on machine to be arrange by customer | ||
| Power | 2.0 H.P. For Machine and 3.0 H.P. For Vacuum Pump | 2.5 H.P. For Machine and 3.0 H.P. For Vacuum Pump | ||
| Overall Dimension | 1700 mm (L) x 1000 mm (W) x 1800 mm approx. | 2000 mm (L) x 1200 mm (W) x 1800 mm approx. | ||
| Compressed Air | Filtered, Oil Free 2kg/cm2 provided by customer only | Filtered, Oil Free 2kg/cm2 provided by customer only | ||
| Vacuum | 28” Hg. @ 300 LPM, provided by Customers only, 500LPM recommended | 28” Hg. @ 300 LPM, provided by Customers only, 500LPM recommended | ||
| * Power voltage can be adjusted as per customer’s domestic power voltage requirements. * Rights of technical improvements & modification reserved. * Illustrations & dimensions are shown for information purpose only. |
||||
