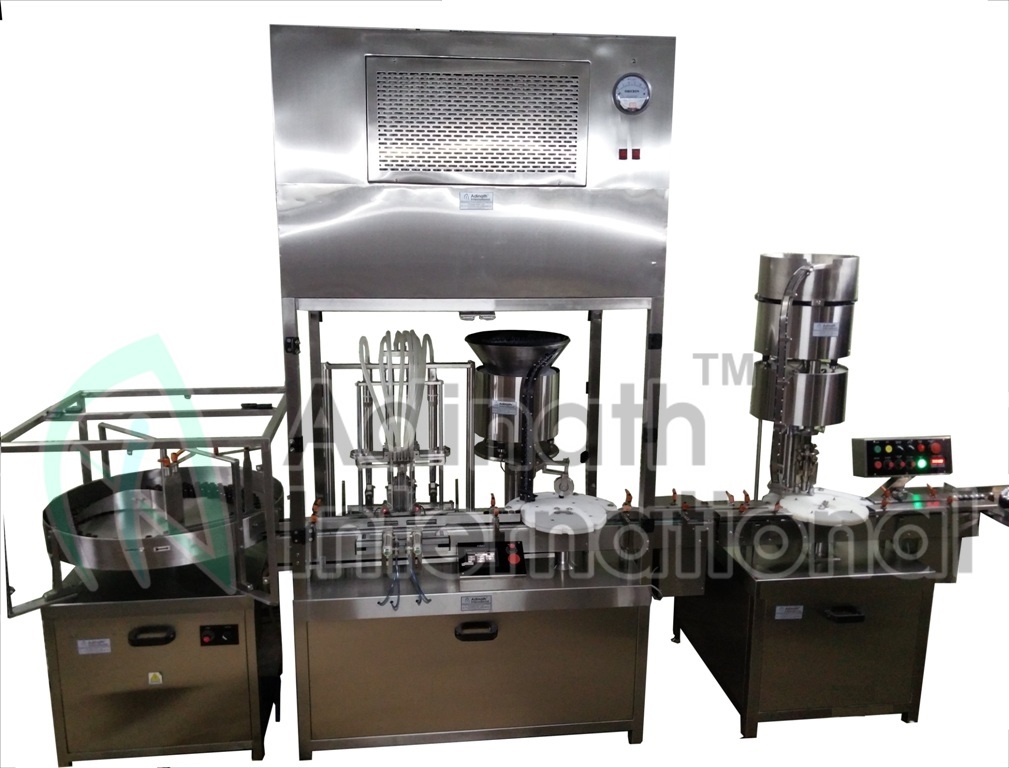

Vial Filling and Cap Sealing Machine

Automatic Vial Flling Rubber Stoppering and Cap Sealing Machine is a compact model use for filling, rubber stoppering and cap sealing of injectable liquid vials. This compact machine is also called combi vial filling stoppering and sealing machine as all three process take place on single platform. Machine is ideal choice for small but online tunnel based filling line operations.

Salient Features

  • Suitable for filling 2ml to 100ml volume.
  • No cross contamination.
  • 18 inch size turn table for automatic feeding of vials.
  • Digital Vial Counter for counting production output.
  • Machine Construction in Stainless Steel 304.
  • All contact parts made from high quality Stainless Steel 316L.
  • Machine is elegantly Stainless Steel matt finish.
  • Stainless Steel liquid filling syringe.
  • PLC automation & control through control panel.
  • Servo Drive for filling Volume Adjustments.
  •  “No Vial - No Filling” system.
  • “No Vial - No Bunging” system.
  • “No Vial - No Cap” system.
  • Imported motor & gearbox for machine.
  • Vibratory bowl for feeding of rubber bungs.
  • Vibratory bowl for feeding of Caps.
  • Star wheel & guide made of Delril material for each vial size.
  • Needle height Adjustment can be done by a set screw.
  • Volume control can be done by Servo motor by PLC.
  • Height adjustment for rubber bung & cap placement can be done by a screw.
  • Castor wheels for the easy movement of the equipment.
  • Acrylic Guard structure is made of Stainless Steel 304 (optional).

Process Operation

The incoming dry vials (sterilized and siliconised) are fed through the in-feed turn table and suitably guided on the moving delrin slat conveyor belt at the required speed of the correct placement below filling unit.

The filling unit consists of filling head, syringe & nozzle uses for filling. Syringe is made of Stainless Steel 316L construction. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided for ''No Vial-No Filling'' operation. Syringe is mounted on eccentric block & driving through bottom main gear box. Volume can be increased & decreased by adjusting stroke length of piston. Syringe is having non return valve for sucking & delivering situation to avoid volume variation. Liquid reaches to filling nozzles through silicon transparent pipe. Nozzle having up & down movement with help of cam mechanism and it go down when starwheel hold the vial and starts filling when it starts to move up. After completion of filling operation, starwheel delivers vial on stoppering unit for rubber stoppering operation. The sterilized & siliconised rubber stoppers stored in the vibrator bowl moves vertically to the rubber stopper chute. Vials are hold firmly by starwheel, which rotate in continuous rotary motion. Vials coming from filling unit move in rotary direction along with starwheel, during movement it picks up the rubber stopper from the exit end of the chute & rubber stopper get pressed by fix spring loaded single pressing roller.

Duly Stoppered Vials are delivered to sealing unit through same starwheel. Aluminium caps are kept in vibratory bowl automatically oriented in right direction before entering the delivery chute. Vial during its rotation movement picks up aluminum seal from the retaining finger of delivery chute & correctly position on the vial before entering sealing turret. Vials now moves on the spring loaded sealing platform, where free spinning sealing rollers moves gradually inside to complete the sealing operation during rotational movement of sealing platform turret. Now sealed vials are transferred to exit starwheel pocket & further moves out on to the flat conveyor belt for further labeling operations.

Technical Specification

Model AVSC-30
Production Rate 20 to 30 Vials/Minute
No of Filling & Sealing Head Single
Filling Accuracy: ±0.5%
Power Supply 1 H.P.
Electrical Characteristics 440 Volts, 3 Phase, 50 Hertz, 4 Wire System
Overall Dimension: 1600mm (L) x 900mm (W) x 1680mm (H)
  (Dimension include basic machine & 30” In-feed turn table)

Note:
* Electrical characteristics can be adjusted as per customer’s requirements
* Rights of technical improvement & modification reserved.
* Illustration & dimensions are shown for information purpose only.
